Profit Analysis of Intelligent Express Cabinets

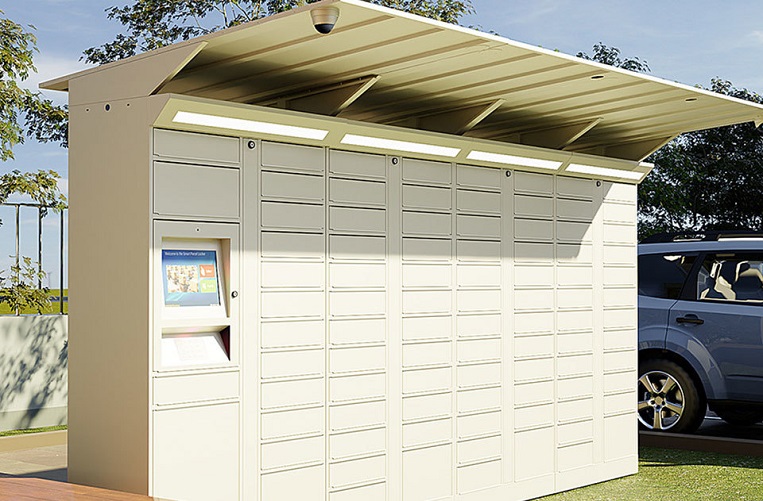

What is an intelligent express smart locker?

Smart parcel lockers are self-service electronic storage devices that enable 24/7 contactless delivery and pickup of parcels, improving logistics efficiency.

Description of the Payment System for Smart Parcel Lockers

The payment system of a smart locker is a critical functional module that enables automated financial transactions between users (consumers and couriers) and the service operator. It is designed to be fast, secure, and multi-channel, supporting various payment scenarios such as overtime storage fees, parcel sending fees, and value-added service charges.

1. Core Components of the Payment System

The payment system typically consists of four interconnected layers:

1.1 User Interface Layer

Touchscreen Terminal: Mounted on the main cabinet, the screen displays QR codes, payment amounts, and transaction status.

Mobile Application (WeChat Mini-Program / Dedicated App): Users receive payment notifications, view pending charges, and complete payments remotely.

SMS / Notification Link: A direct payment link may be included in SMS reminders for overtime fees.

1.2 Payment Gateway Layer

Third-Party Payment Processors: Integration with major platforms such as WeChat Pay, Alipay, and UnionPay.

API Interfaces: The locker system communicates securely with payment gateways to initiate, verify, and settle transactions.

Multi-Currency Support (if applicable): For international deployments, systems may support USD, EUR, or local currencies.

1.3 Business Logic Layer

Fee Calculation Engine: Automatically computes charges based on rules (e.g., RMB 0.5 per 12 hours after 18 free hours; capped at RMB 3).

User Account Management: Tracks user balances, payment history, and pending fees.

Courier Account System: Dedicated accounts for delivery personnel, often settled via pre-paid credits or monthly billing.

1.4 Security & Compliance Layer

Data Encryption: All payment data is encrypted using TLS/SSL protocols during transmission.

PCI DSS Compliance: Systems handling card data adhere to Payment Card Industry Data Security Standards.

Transaction Logging: Every payment is recorded with timestamp, amount, user ID, and locker ID for audit purposes.

2. Step-by-Step Payment Workflow (Example: Overtime Fee)

Trigger: User approaches locker after free storage period has expired.

Notification: Screen displays "Overtime fee required: RMB 0.50. Please pay to unlock."

Payment Initiation: User selects payment method (WeChat Pay or Alipay).

QR Code Generation: Locker generates a dynamic QR code on screen.

User Action: User scans the QR code with their mobile phone.

Authentication: User confirms payment via fingerprint, Face ID, or passcode.

Transaction Processing: Payment gateway processes the charge and returns a success/failure response.

Unlock Command: Upon successful payment, locker system sends an unlock signal to the specific compartment door.

Receipt (Optional): User may receive an electronic receipt via the app or SMS.

4. Key Features of the Payment System

4.1 Frictionless Experience

No need to pre-register payment methods for one-time users.

QR code scanning eliminates manual amount entry.

Offline payment capability: lockers with intermittent connectivity can queue transactions and sync later.

4.2 Automated Fee Calculation

Real-time calculation based on timestamps stored in the cloud.

Grace period enforcement (e.g., first 18 hours free).

Daily caps to prevent excessive charges (e.g., maximum RMB 3 per parcel).

4.3 Multiple Payment Channels

On-site: Touchscreen QR code, NFC (near-field communication) for contactless cards.

Remote: In-app payment, SMS link, auto-deduction from pre-bound accounts.

Offline: Cash payment is not supported on most modern smart lockers for security and maintenance reasons.

4.4 Refund & Dispute Handling

Automatic refunds if a parcel is retrieved within a short grace window after payment.

User-initiated dispute resolution through customer service, with transaction records as evidence.

Operator ability to manually override fees (e.g., for system errors).

Advantages of the Smart Locker Payment System

24/7 Availability: Payments can be processed at any time without human intervention.

Reduced Cash Handling: Eliminates risks associated with cash collection, counterfeit bills, and theft.

Data-Driven Insights: Operators can analyze payment patterns to optimize pricing (e.g., adjusting free storage hours based on peak usage).

Seamless Integration with Loyalty Programs: Users may earn points or coupons for using the payment system.

The profit outlook for the smart locker industry hinges on two key variables: the ability to sustainably expand high-margin value-added services, creating a "basic service for traffic, VAS for monetization" model; and the ability to differentiate effectively in competition with parcel stations. The industry is currently transitioning from pure infrastructure toward community commercial hubs—a shift that will determine its long-term profitability.

While unit-level economics remain challenging with gross margins around 6%, the strategic value of lockers as data-gathering nodes and community touchpoints continues to drive investment. The successful pivot toward e-commerce return services demonstrates that adjacent business models can unlock profitability where traditional delivery fees could not.
